Boxer engine torque settings

[Sprint67]

Hi all,

Does anyone have a boxer engine diagram showing all torque settings crank, cams, flywheel etc.

Any help, advise much appreciated....

Cathal.

[LooLooSud33Spider]

Hi Cathal.

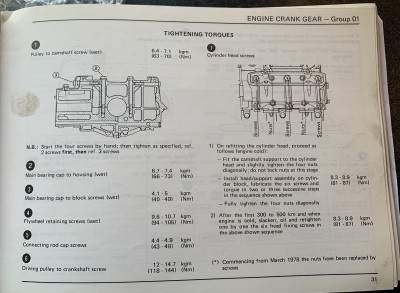

These should help

Lou

[bobkelso]

Hi all, really sad about international situation,
reading alfa forum to give me a break and relax

if you stil didn't have, considere to have PDF of Alfa Workshop manuals
about Sud / Sprint / Alfa 33
(and eventually also 145 manuals boxer engine and gearbox repair section )

PS: I'm quite confident after so many years these manuals about 33 boxer
are considered no more of alfa-fiat private propriety by alfa-fiat himself
and free access on the web to them is well considered
to help repair and conserve their vintage cars,
as alfa-fiat are not doing no more by himself this service

I hope I have forum permission to post here some links
to some webpages where some users generously put them togheter,
surely these links are already been posted in the past but still usefull:


https://www.alfa-restoration.co.uk/inde ... op-manuals

http://www.berlinasportivo.com/pages/wshop33.php

http://www.berlinasportivo.com/pages/wshop156.php

https://alfaromeo33.extra.hu/

http://alfasprint.extra.hu/

[Sprint67]

Hi Loo,

Thanks for posting diagram, for sure this will help.

But is there an actual diagram showing torque settings for all engine auxiliary parts example crank pulley to crank shaft, cam pulleys to cam shafts, flywheel to end of crank shaft etc....

Forgive me for maybe not explaining myself a bit better and possibly my stupidity too .

Cathal.

[LooLooSud33Spider]

Cathal.
Most of those items are listed on the first page
Cam pulleys item 1
Flywheel bolts item 4
Crank nut Item 6
(NB. The crank is listed as a Screw when it’s actually a Nut)

[Sprint67]

Hi Loo,

Thanks again for replying, like I said in my previous post I think it's a case of stupidity on my behalf

Cathal.

[Sprint67]

Hi bobkelso,

Thanks for your reply also.

Cathal.
